The motorcycle handlebar components produced by Max Trading typically include the motorcycle handlebar that determines the handling posture, the motorcycle handlebar seat switch that enables command transmission, and the motorcycle handlebar cover that optimizes the grip experience. Max trading subdivides these three types of products from aspects such as product structure, functionality, and types to help everyone understand the value and differences of each component.

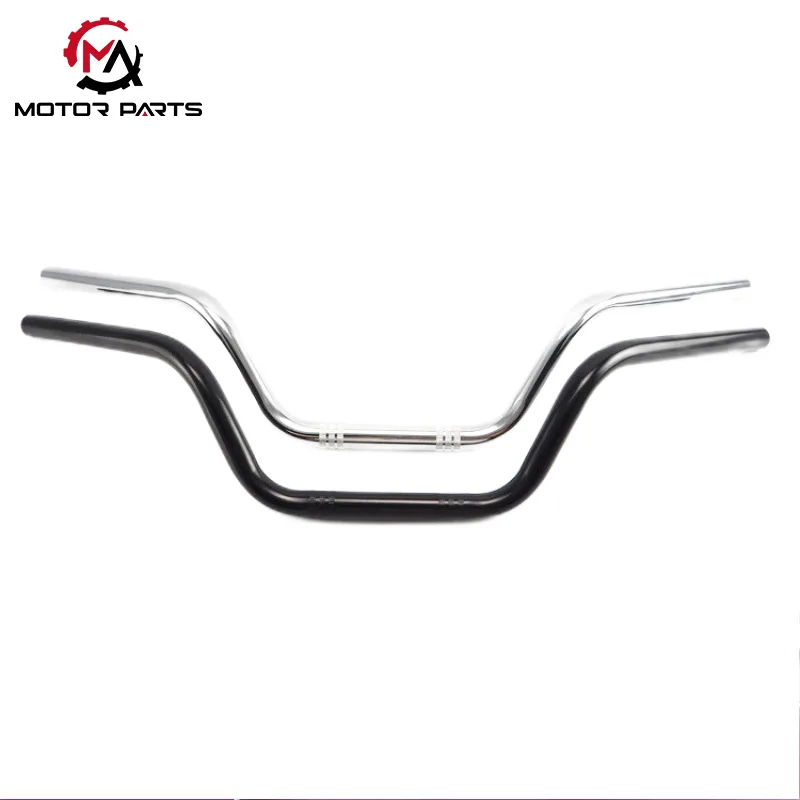

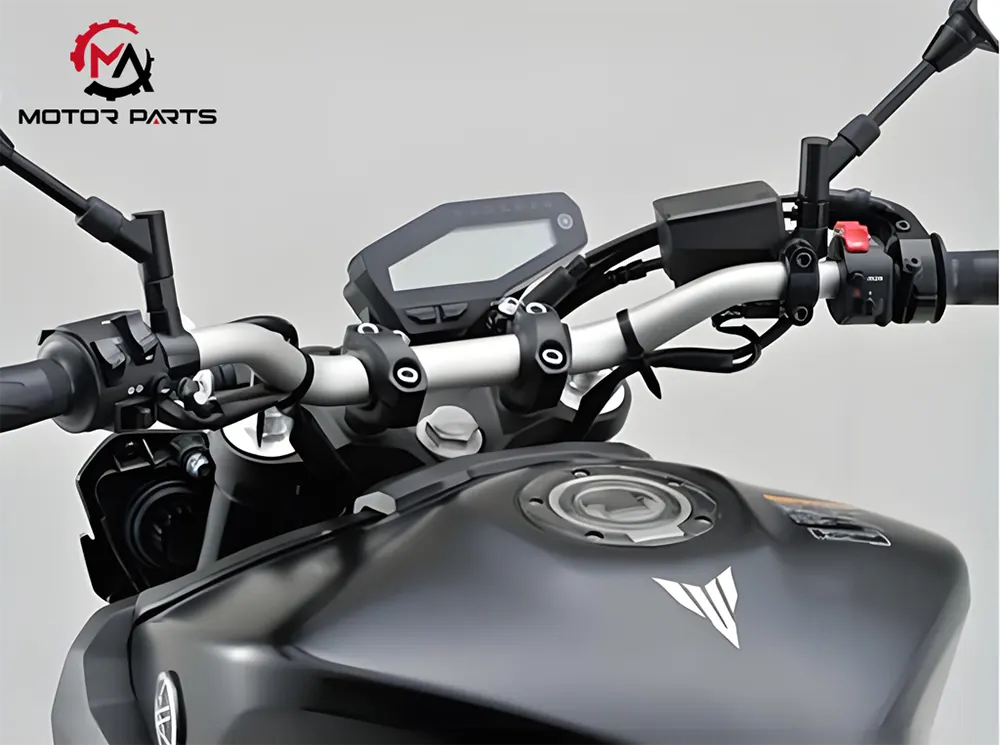

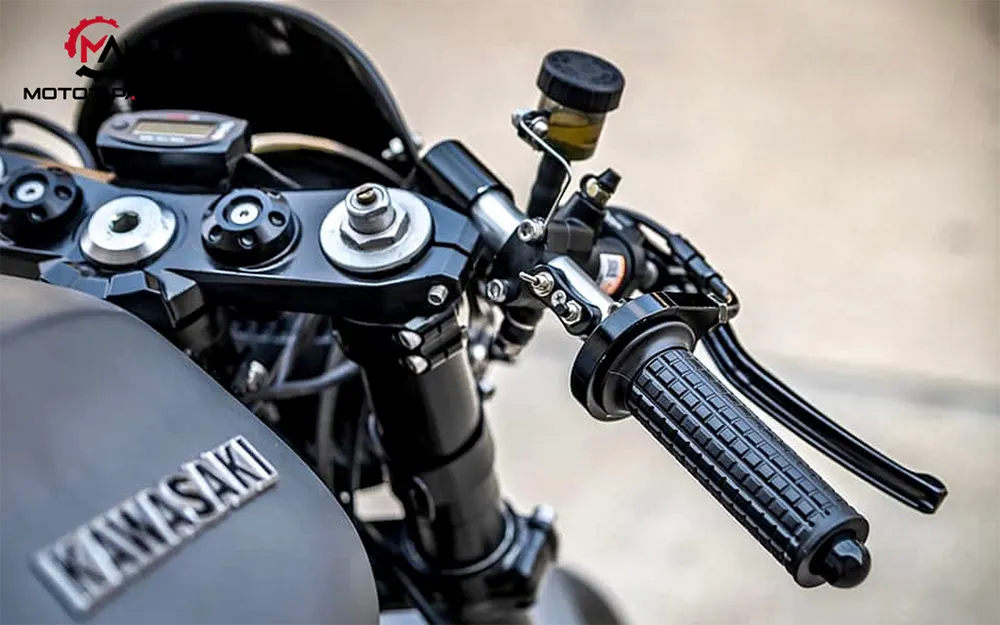

As a key tubular component of the motorcycle steering system, the handlebar of a motorcycle bears the core function of steering direction and serves as the installation base for various control components. At the same time, it needs to support the weight of some riders, so it is designed as an integrated structure. The handlebar body is made of circular cross-section pipes, and common materials include aluminum alloy, chrome plated steel, carbon fiber, or titanium alloy, which are more suitable for some racing grade motorcycles. These materials have both strength and lightweight characteristics, meeting the needs of different riding postures. To achieve a concealed layout of cables, pre drilled holes will be drilled on the pipes for internal wiring of control cables such as brakes, throttle, clutches, etc.

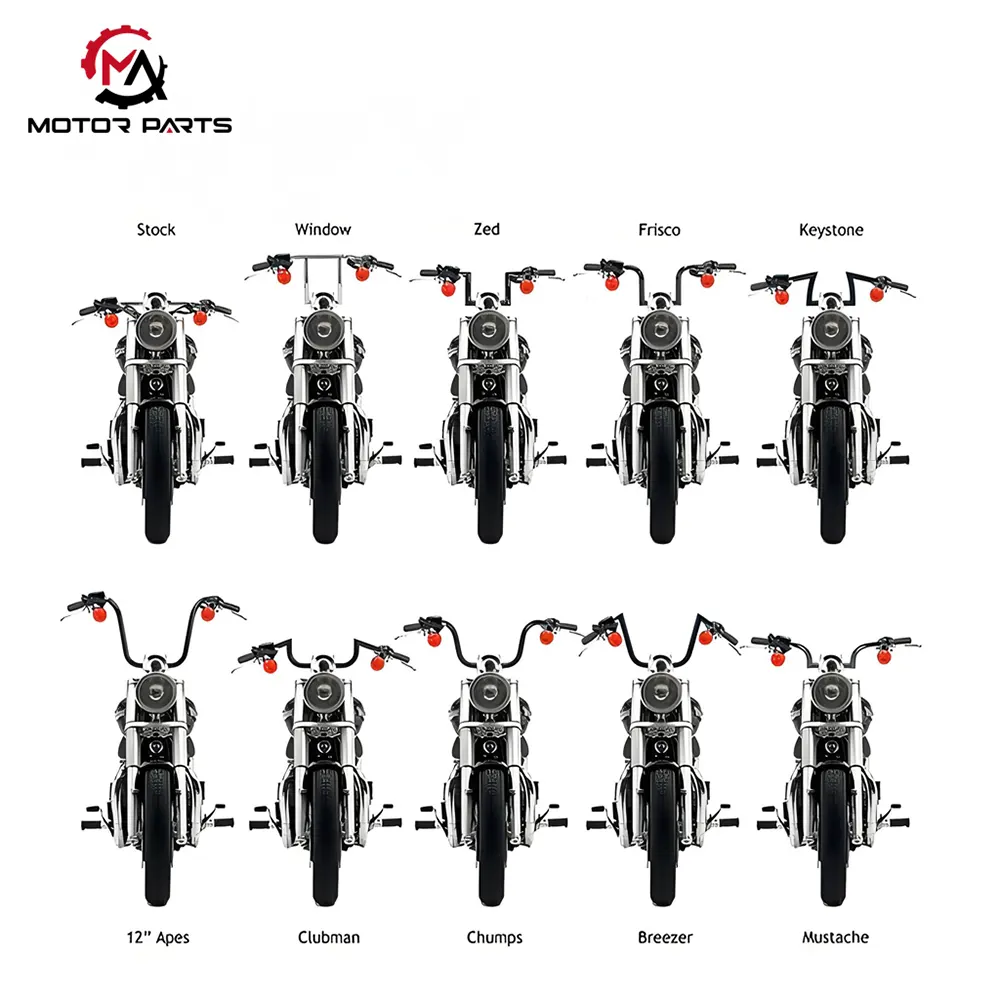

The shape of motorcycle handlebars also varies according to riding needs. The following are common handlebar shapes sold by Max Trading:
|
Handlebar type |
Design features |
Applicable vehicle models and scenarios |
|
Ape-hangers |
The height significantly exceeds the usual range, and the grip position is close to shoulder height |
Customized cruise bikes and Chopper style models, suitable for cycling scenes that pursue individuality and leisure |
|
Beach bars |
Backward tilt design, naturally conforms to the rider's body curve |
Various cruise models, especially suitable for long-distance cycling that emphasizes riding comfort and relaxed posture |
|
Clip-ons |
Directly installed on the front fork riser, with a fixed angle design |
Sports motorcycle, designed for racetracks or high-speed riding that pursue ultimate handling experience |
|
Clubman bars |
The grip is slightly tilted downwards, positioned towards the front |
Retro sports car model, showcasing classic retro style while ensuring handling performance |

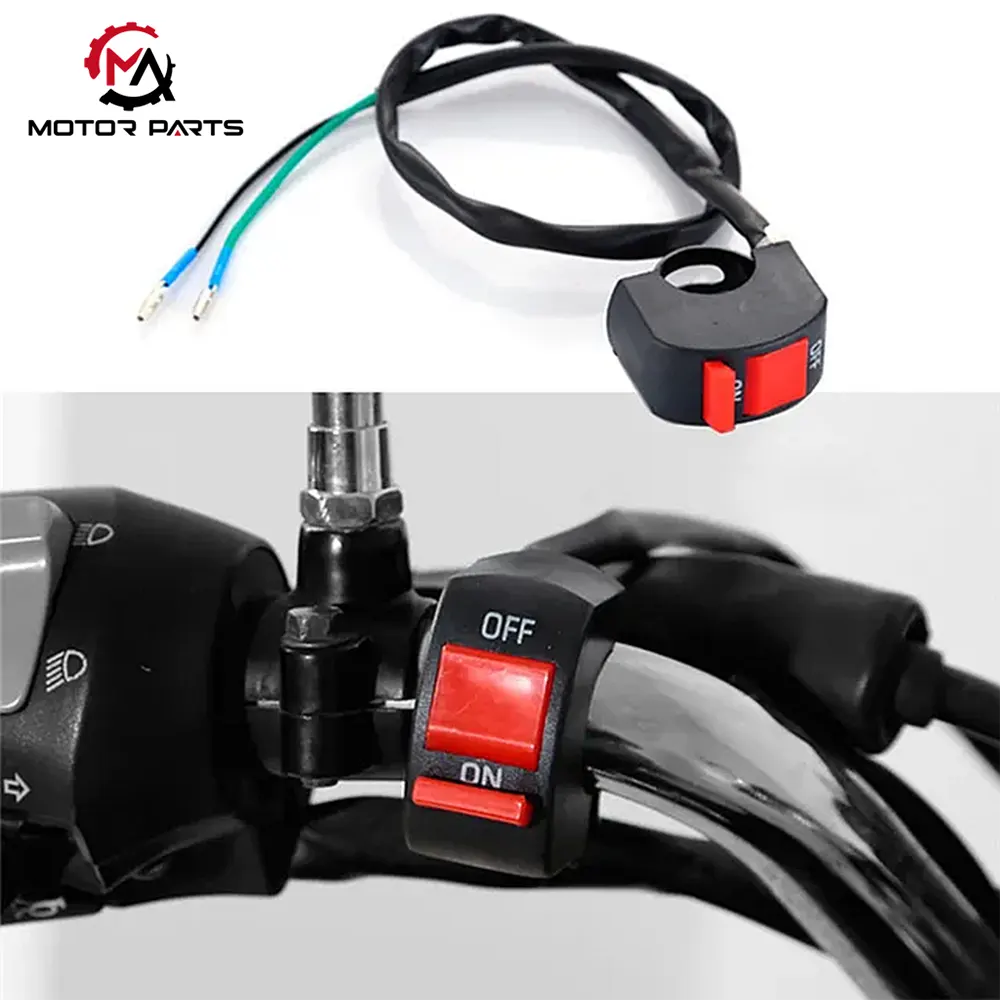

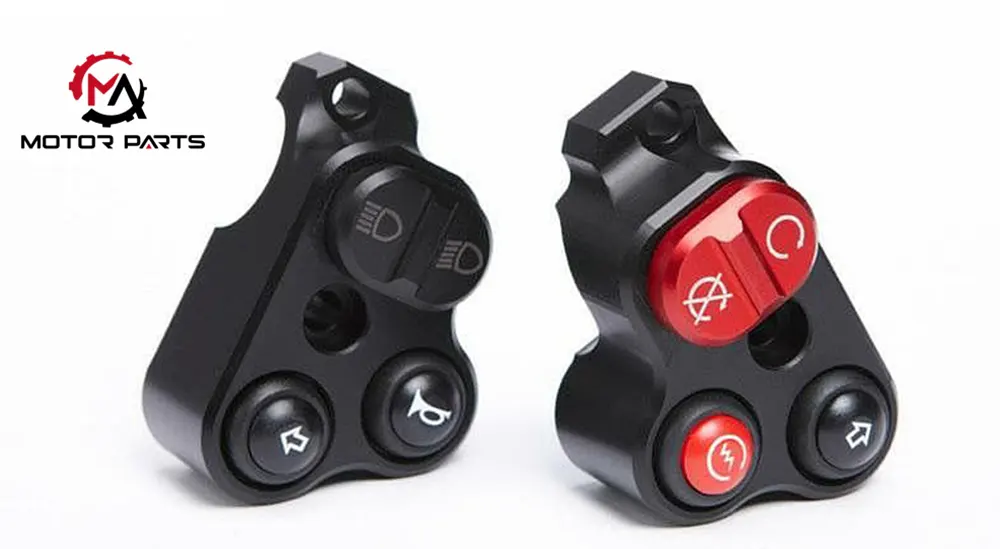

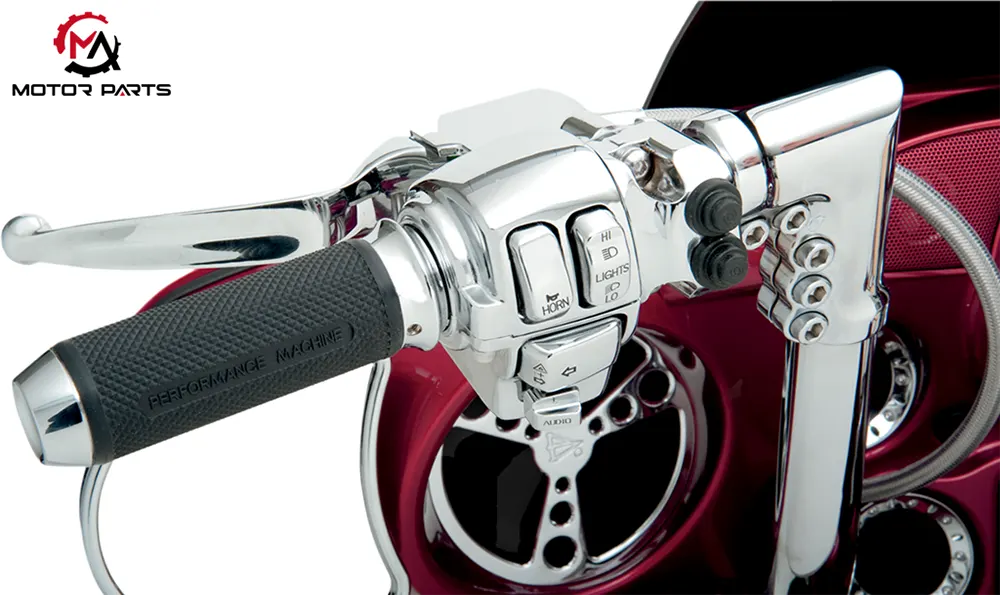

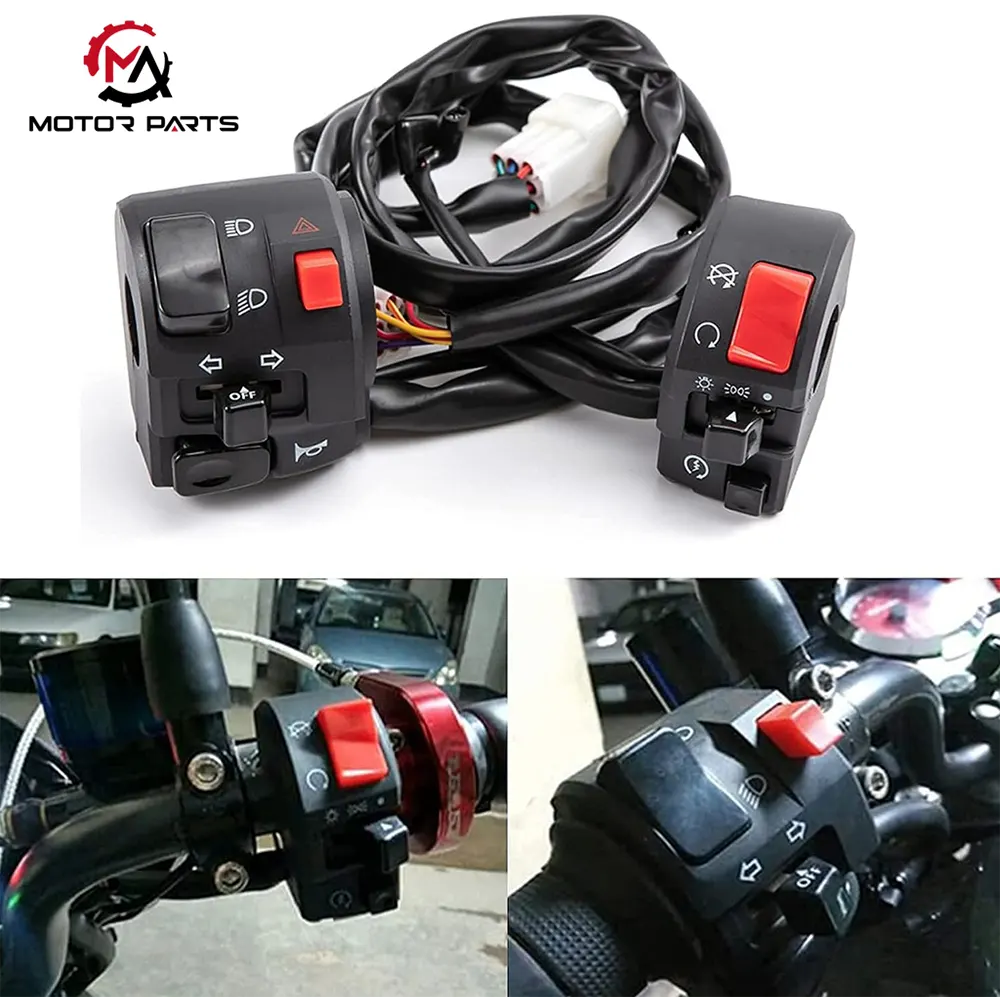

The handle switch is a control component integrated into the base on both sides of the handlebar, which is the operating center for controlling the riding state. The motorcycle handle switch achieves real-time control of key functions such as light on/off, turn signal, horn sound, etc. through mechanical triggering and circuit connection. Its design rationality directly affects riding safety and operational convenience. The specific functions and layout are as follows:
Light control system: including overtaking headlight button (quick switch high beam warning), fluorescent light button (daily lighting), and light change button (switch light mode), solving the problem that traditional single high beam button cannot adapt to multiple scenes;
Basic safety control: left and right turn signal buttons (with rebound reset function), horn button, emergency shutdown switch;
Auxiliary function expansion: cruise control switch, heated grip adjustment, driving mode switching and other functions. The left handlebar is mainly used for lighting and steering control, while the right side focuses on throttle and brake related auxiliary functions.

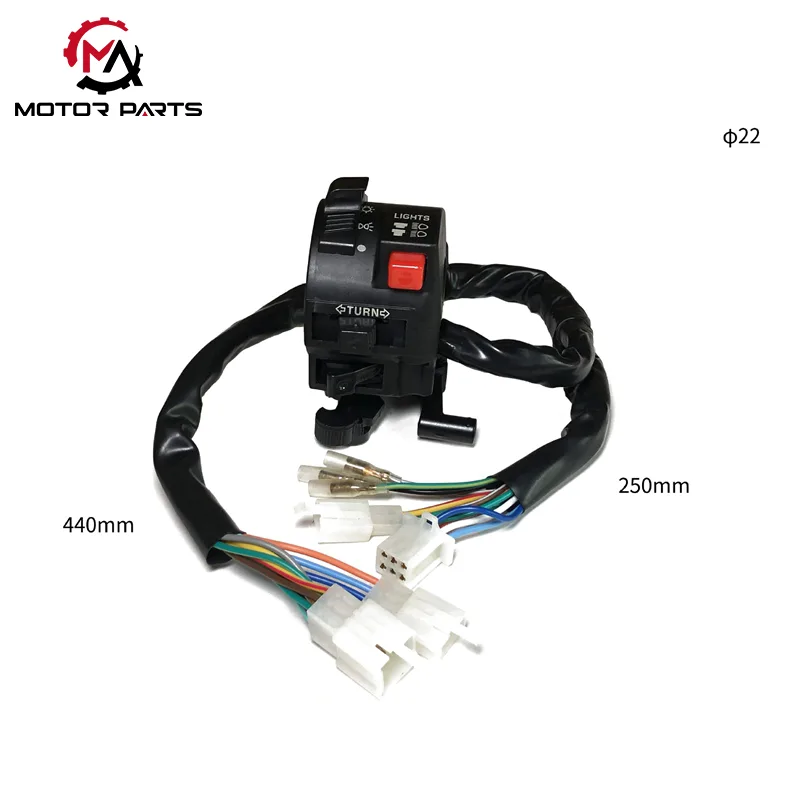

A typical handle switch adopts a modular layered design, with its core components consisting of an upper shell, functional buttons, metal trigger components, and circuit board. As an integrated installation carrier, the upper shell is equipped with standardized buckles and threaded holes on the surface, which are compatible with the handlebar diameters of different models of motorcycles. The functional button group adopts an ergonomic curved shape, and each button is equipped with a customized metal trigger on the side - taking the overtaking headlight button as an example, its corresponding first metal part is made of phosphor bronze material, with a silver plated surface, which has excellent conductivity and wear resistance.
When the rider presses the button, the metal trigger slides along the gold-plated contact track on the surface of the circuit board, forming a multi-level clamping structure through the built-in elastic protrusion and limit hole. This precise mechanical cooperation can achieve precise gear switching of more than three gears, for example, the turn signal button controls the left turn, right turn, and off states through the three-stage displacement of metal parts. At the same time, the limit pin shaft integrated at the bottom of the button adopts a ball bearing structure, which tightly engages with the wavy gear groove on the inner wall of the housing, ensuring that the stroke error of each press is controlled within ± 0.3mm.
To further enhance operational stability, the high-end lever switch is equipped with a protruding platform connecting hole rotating pair at the button base, which is combined with a damping rubber bushing to form a buffering structure. Effectively reduce hand fatigue caused by prolonged operation, while maintaining contact reliability in extreme vibration environments.

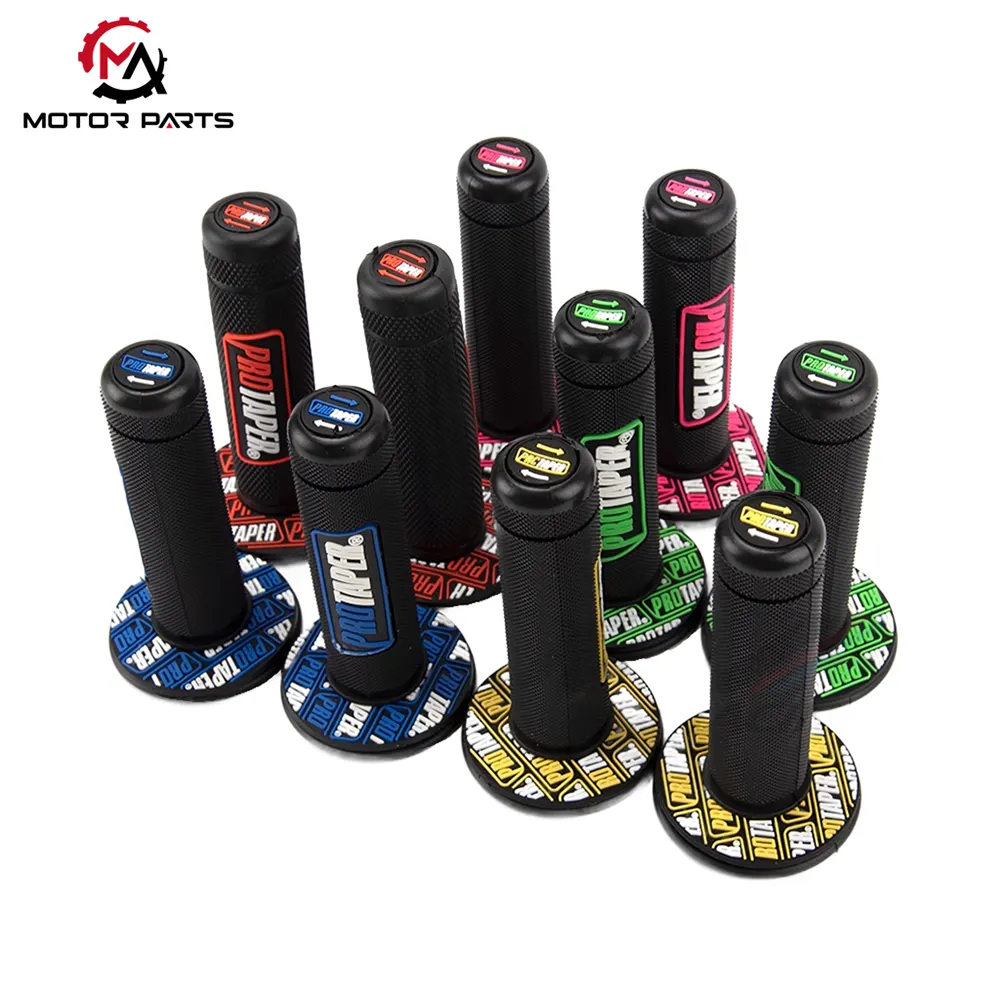

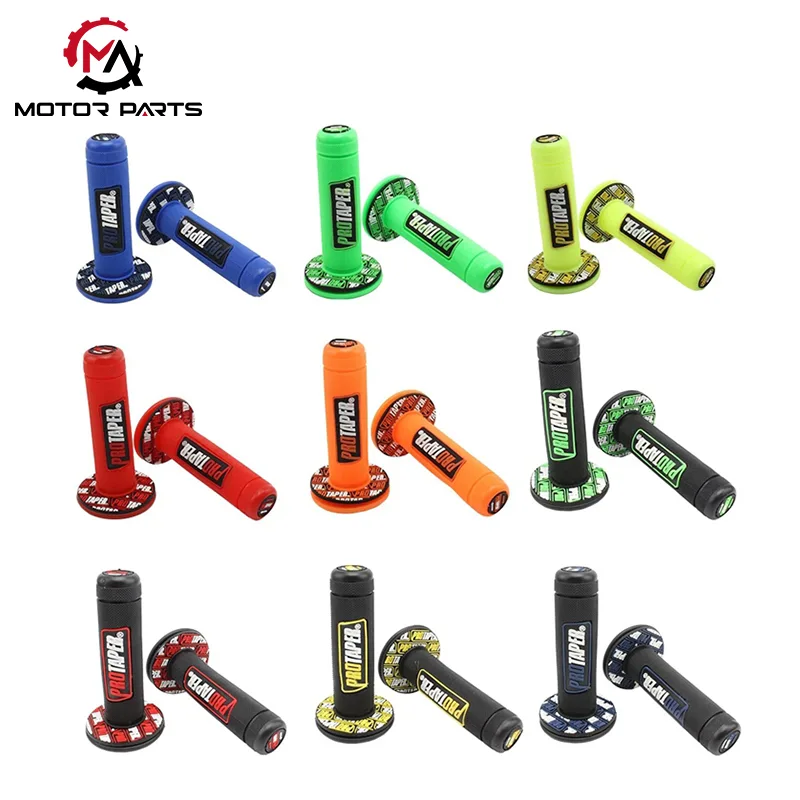

As a key accessory that directly contacts the rider's hand, the motorcycle handle not only affects grip comfort but also directly impacts riding safety. It has become an important influencing factor on the riding experience by improving grip stability, relieving hand fatigue, and serving both protective and decorative functions. Authoritative data shows that slip accidents caused by substandard materials account for 18.7% of all cycling accidents, demonstrating the importance of its quality.
Here is a comparison of the main materials and performance of motorcycle handle grips produced:
|
Material type |
Core strengths |
Applicable scenarios |
Precautions |
|
Silicone |
It has super strong anti slip performance (static friction coefficient>0.8), a wide temperature resistance range (-40 ℃ to 120 ℃), and excellent resilience |
Wet and rainy areas, hot summer cycling |
Avoid contact with sharp objects to prevent surface scratches |
|
Natural rubber |
Featuring excellent elasticity and high wear resistance, it can withstand long-term wear and tear |
Daily urban commuting, short to medium distance cycling |
High temperature environments are prone to softening, while low temperature environments may experience hardening |
|
Leather (genuine leather) |
Bringing high-end luxury texture, outstanding breathability, and long-term grip that is not prone to stuffiness and heat sensation |
Retro style car models, long-distance motorcycles |
Regular maintenance is required, and the waterproof performance is relatively weak |
|
Composite material |
Cleverly integrating the dual characteristics of anti slip and breathability,balancing comfort and safety |
Suitable for various cycling scenarios, especially for long-distance cycling |
Attention should be paid to the aging of the surface material and timely replacement and maintenance |
The exterior design of motorcycle handle grips also play an important role in riding safety
Anti slip design: The surface is designed with three-dimensional stripes and granular anti slip textures, and some styles have added finger joint separation areas to effectively improve grip stability during sudden braking and cornering, ensuring safe riding.
Ergonomic optimization: Adopting a microporous breathable structure to quickly remove sweat from the palm of the hand, coupled with an ergonomic curve design that closely fits the curve of the tiger's mouth. At the same time, elasticity materials are selected, with a compression deformation rate of over 40%, significantly dispersing grip pressure and providing a comfortable riding experience.
Functional adaptation: Specially reserved brake lever clearance space to avoid interference with braking operation and ensure timely braking response. The heated model has a built-in resistance wire that is compatible with 12V/24V car voltage, which can maintain a warm grip even in cold weather.
The perfect riding experience and safe riding environment have always been the ideal state pursued by Max Trading, hoping that Max Trading's products can accompany riders all the way forward.
